A comprehensive photovoltaic monitoring and control system that delivers complete visibility into your solar energy installations — from performance to system-wide analytics, all in real time.
Everything you need to monitor, control, and optimise your solar energy system.
Live visibility into voltage, current, power output, and energy yield at the string and inverter level. Refreshes every second for true operational awareness.
Integrated Maximum Power Point Tracking algorithms continuously maximise energy harvest across varying irradiance and temperature conditions.
Built-in high-resolution data logging stores energy production, alarms, and events. Long-term trend analysis is available at the touch of a button.
Configurable thresholds for voltage deviations, string faults, and communication errors. Alerts delivered via SMS, email, or SCADA integration.
Access your system dashboard from any web browser or mobile device. Web based configuration and diagnostics without any specialized software.
Compatible with inverters from major manufacturers via Modbus RTU/TCP, SunSpec, and proprietary protocols. Easy plug-and-play commissioning.

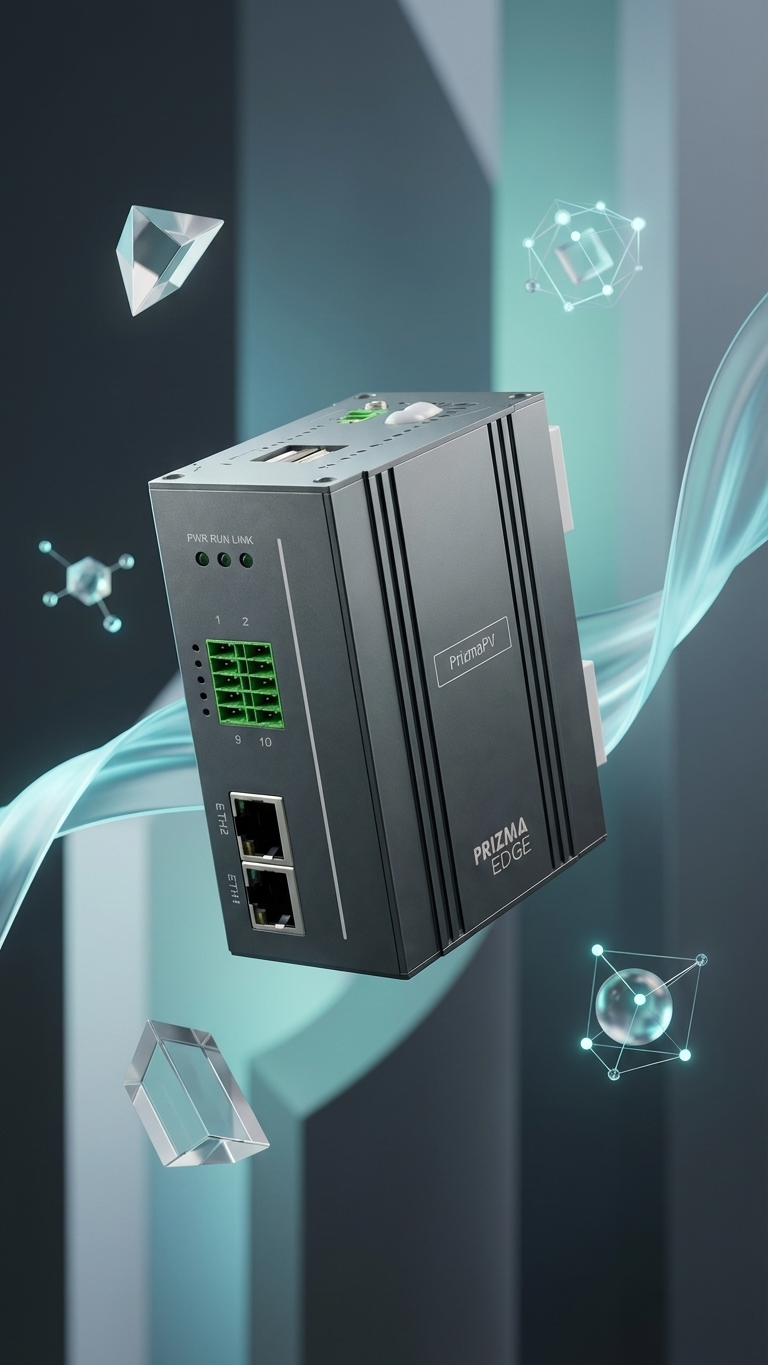

PrizmaPV V1 combines a rugged industrial controller with powerful monitoring software, eliminating the need for separate dataloggers, communication gateways, and software licences. Everything runs on one compact DIN-rail device.
Designed for solar farms, commercial rooftop installations, and hybrid renewable energy systems, PrizmaPV V1 provides the operational intelligence you need to maximise uptime and energy yield while minimising maintenance costs.
| Parameter | Value |
|---|---|
| Processor | ARM Cortex-A7, 1 GHz |
| Memory | 512 MB RAM / 4 GB eMMC |
| Display | 7" Capacitive Touch (optional) |
| Operating Temperature | -20°C to +65°C |
| Protection Rating | IP20 (DIN Rail) / IP65 (Enclosure) |
| Power Supply | 12–24 VDC |
| Mounting | DIN Rail 35mm |
| Dimensions (mm) | 159 × 90 × 58 |
| Parameter | Value |
|---|---|
| Ethernet | 2× 10/100 Mbps RJ45 |
| Serial Ports | 2× RS-485, 1× RS-232 |
| Cellular | 4G LTE (optional module) |
| Protocols | Modbus RTU/TCP, SunSpec |
| Inverters Supported | Up to 32 per unit |
| Data Logging | 1-sec resolution, 5 years local storage |
| Cloud Integration | MQTT, REST API |
| Cybersecurity | VPN, Role-based Access |
PrizmaPV V1 is engineered to perform reliably in harsh industrial environments. The ruggedised enclosure, wide operating temperature range, and industrial-grade components ensure years of maintenance-free operation.
Commissioning is fast and straightforward — our custom device creation feature flexibility to integrate any inverters, meters, controller and any third party dvice, reducing installation time to under an hour in most cases.
Monitor hundreds of inverters across large-scale PV installations with centralised control.
Optimise rooftop solar on commercial and industrial buildings with easy web access.
Integrate solar with battery storage and diesel backup for full hybrid energy management.
Cellular connectivity keeps remote agricultural and off-grid installations connected.
Everything you need to know about PrizmaPV V1 and solar monitoring.
A PV monitoring controller is a dedicated hardware device that connects to your solar inverters and meters to collect, display, and log real-time performance data — tracking voltage, current, power output, energy yield, and fault conditions. PrizmaPV V1 combines monitoring, control, and data logging in one compact DIN-rail device with no separate software licences required.
PrizmaPV V1 supports up to 32 inverters per unit via Modbus RTU (RS-485) or Modbus TCP (Ethernet). For larger solar farms requiring more inverters, multiple units can be deployed and managed centrally through the Prizma Edge Cloud Platform for a unified multi-site view.
PrizmaPV V1 is compatible with inverters from most major manufacturers including Huawei, SMA, Fronius, ABB, Growatt, Solis, Goodwe, and any inverter supporting Modbus RTU/TCP or SunSpec protocol. Custom device profiles can be created to integrate virtually any inverter brand without waiting for manufacturer support.
Yes. PrizmaPV V1 supports MQTT and REST API for cloud connectivity and integrates natively with the Prizma Edge Cloud Platform for remote monitoring, alerts, and automated reporting. An optional 4G LTE cellular module is available for remote agricultural, off-grid, or mining sites without fixed internet.
Standard solar data loggers only record data. PrizmaPV V1 is a full solar monitoring and control system — it includes a built-in web dashboard, configurable alarm management, grid export curtailment control, weather station integration, role-based user access, and automatic daily/monthly/annual reports — all on one device at a fraction of enterprise system costs.
Contact our team for a free consultation and discover how PrizmaPV V1 can maximise your energy yield.
